Python Object Oriented Programming

UML & Design Patterns

Course 8

Animal +name: str -age: int +speak() +move()

← → to navigate

Course Curriculum

Where we are in the journey

Quiz Time! (Lecture 05)

In aggregation, what happens to parts when the container is destroyed?

A) They are destroyed too

B) They continue to exist independently

C) They become None

D) They move to a new container

Aggregation is a weak "has-a" relationship — parts are passed in from outside and survive independently when the container is destroyed.

Recap: Lecture 05

Composition vs Aggregation

  • Composition: strong ownership — parts created inside, destroyed with the owner
  • Aggregation: weak reference — parts passed in, survive independently
  • Prefer composition over inheritance when there's no "is-a" relationship
class Team:
    def __init__(self, members):
        self.members = members

player = Player("Alice")
team = Team([player])
del team
print(player.name)  # "Alice" still exists

Quiz Time! (Lecture 06)

What does the raise keyword do?

A) Throws / raises an exception

B) Catches an exception

C) Ignores an exception

D) Logs an exception to a file

raise explicitly throws an exception, allowing you to signal errors in your own code. You can raise built-in or custom exceptions.

Recap: Lecture 06

Exception Handling: raise

  • raise — throw your own exceptions
  • Can raise built-in exceptions: ValueError, TypeError
  • Or create custom exceptions by extending Exception
  • Use to enforce preconditions and signal invalid state
def set_age(age):
    if age < 0:
        raise ValueError("Age cannot be negative")
    return age

class InsufficientFunds(Exception):
    pass

Quiz Time! (Lecture 07)

Which SOLID principle does this code violate?

class NotificationService:
    def send(self, message, channel):
        if channel == "email":
            self._send_email(message)
        elif channel == "sms":
            self._send_sms(message)
        elif channel == "slack":
            self._send_slack(message)

A) Liskov Substitution

B) Interface Segregation

C) Open-Closed Principle

D) No violation

Adding WhatsApp means editing this class. OCP says extend with new classes (e.g., WhatsAppChannel), don't modify existing ones.

Recap: Lecture 07

SOLID: Open-Closed Principle

  • Open for extension — you can add new behavior
  • Closed for modification — don't change existing working code
  • Use polymorphism and abstractions to extend
  • Prevents regressions when adding features
class Shape(ABC):
    @abstractmethod
    def area(self): ...

class Circle(Shape):
    def area(self):
        return 3.14 * self.r ** 2

class Triangle(Shape):
    def area(self):
        return 0.5 * self.b * self.h

Agenda for Today

🔸 Singleton — one instance, global access

🔷 Builder — step-by-step construction

UML — Unified Modeling Language

A standardized visual language for software design

What is UML?

  • 📐 Unified Modeling Language — a standardized visual language for software design
  • 🎨 Not a programming language — a modeling language
  • 🤝 Provides a common vocabulary for developers, architects, and stakeholders
  • 📄 Used to visualize, specify, construct, and document software systems
UML helps you think about design before you write code.
Example UML diagram

UML Diagram Categories

📂 Structural Diagrams

Static view — what the system is

  • Class Diagram
  • Object Diagram
  • Component Diagram
  • Package Diagram

⚡ Behavioral Diagrams

Dynamic view — what the system does

  • Sequence Diagram
  • Use Case Diagram
  • Activity Diagram
  • State Machine Diagram

Class Diagrams

The most commonly used UML diagram — let's build one step by step

Step 1: Identify Classes

Start by identifying the key entities in your domain

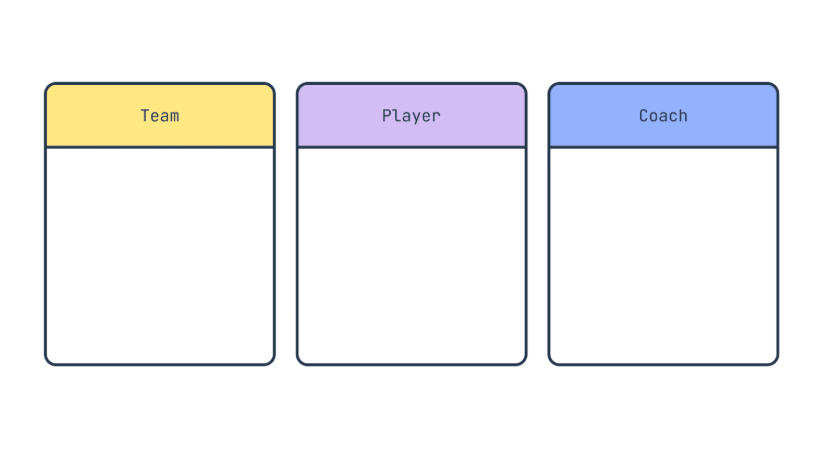

Team, Player, Coach classes
Each box represents a class — a blueprint for objects in our system.

Step 2: Add Attributes

Define the data each class holds

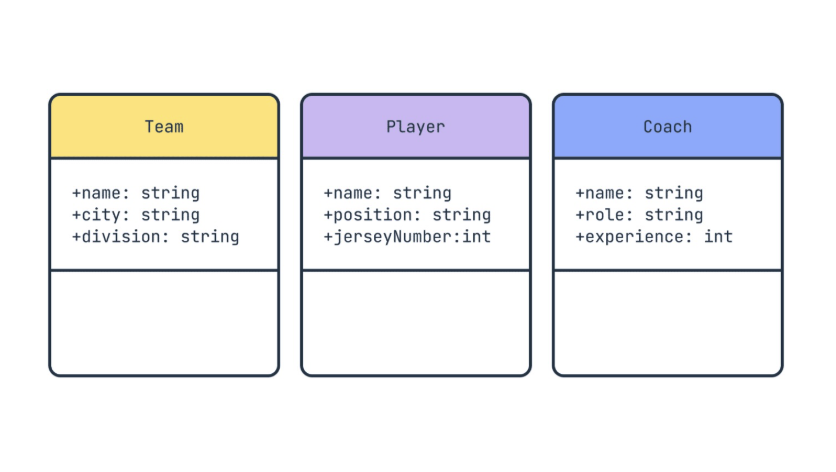

Classes with attributes

Step 3: Add Methods

Define what each class can do

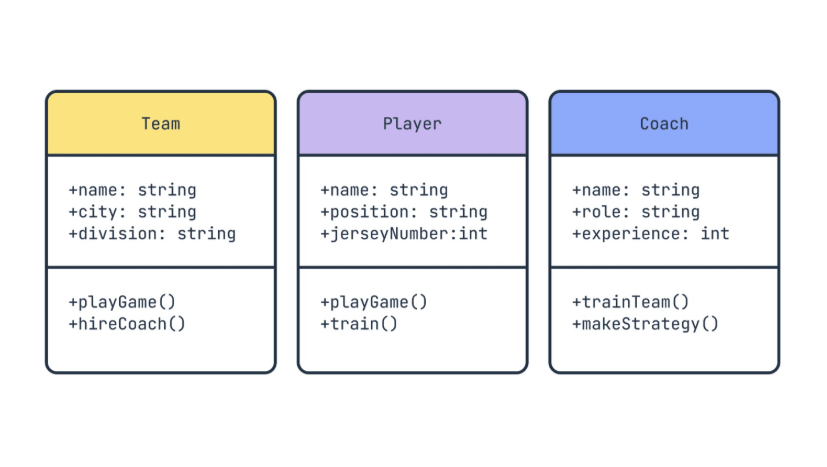

Classes with attributes and methods

Step 4: Visibility Symbols

Control access to attributes and methods

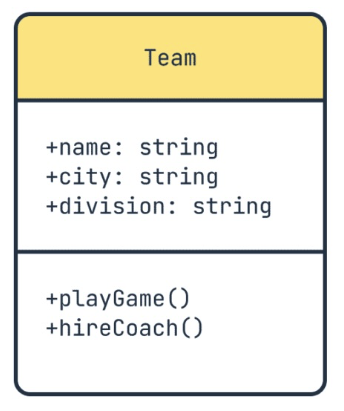

Team class with visibility

+

Public

Accessible from anywhere

-

Private

Only within the class

#

Protected

Class + subclasses

~

Package

Within the package

In Python: _name = protected, __name = private

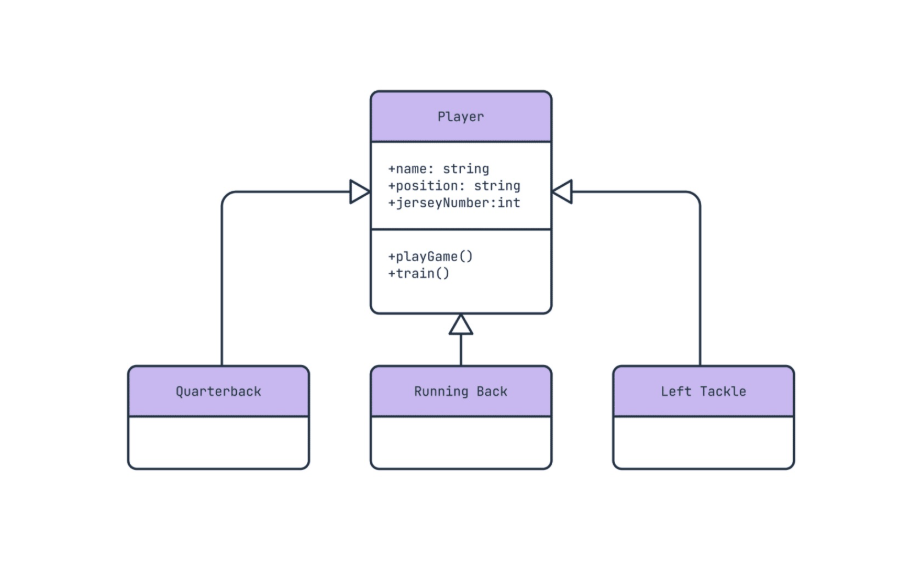

Step 5: Inheritance (Generalization)

An arrow with a hollow triangle points to the parent class

Player inheritance hierarchy

Hollow triangle △ = inheritance ("is-a" relationship)

Step 6: Association

A relationship where one class is related to another but not necessarily dependent

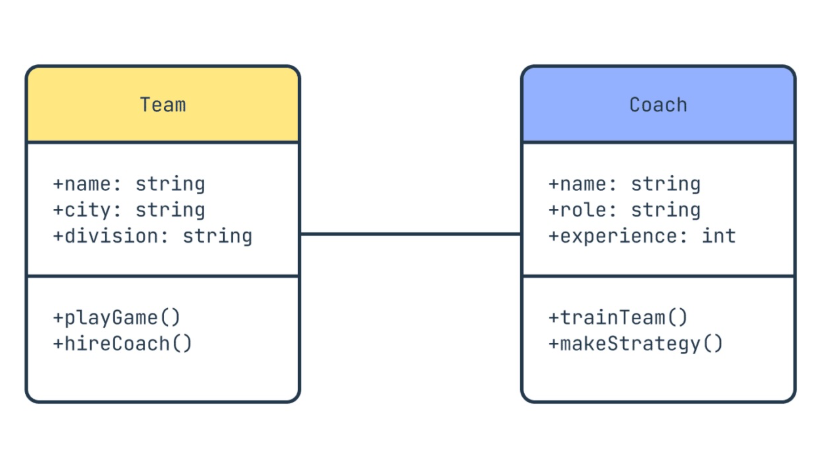

Team and Coach association

Simple line = association (Team employs Coach)

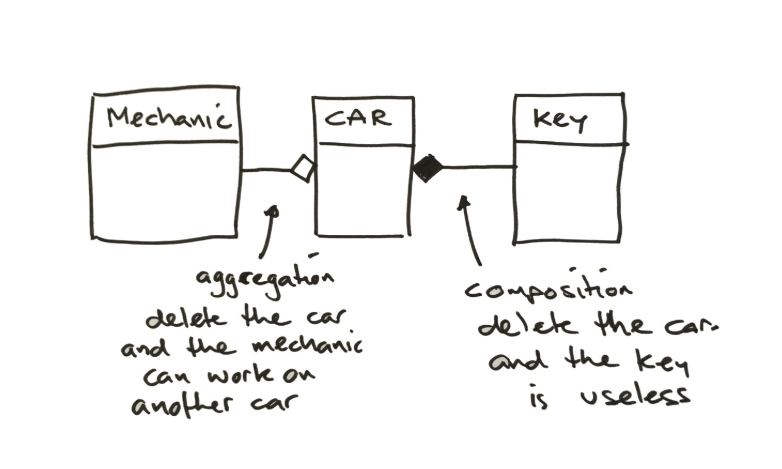

Step 7: Composition & Aggregation

Ownership relationships between classes

Aggregation vs Composition
◇ Aggregation (empty diamond) = parts survive independently. ◆ Composition (filled diamond) = parts die with the owner.

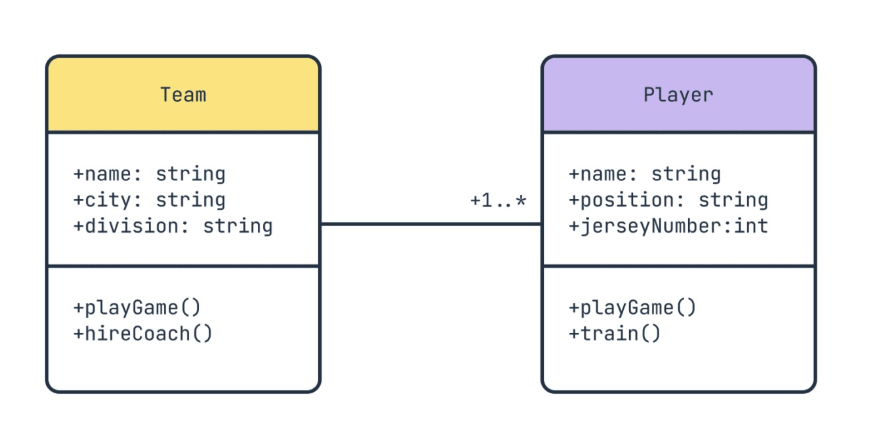

Step 8: Multiplicity

How many instances of one class relate to another

Team and Player with 1..* multiplicity

Common notations:

  • 1 — exactly one
  • 0..1 — zero or one
  • 1..* — one or more
  • * — zero or more
  • n..m — specific range

Class Diagram Cheat Sheet

Visibility

+ public

- private

# protected

~ package

Relationships

──▷ Generalization

─── Association

◇── Aggregation

◆── Composition

Other

- - -▷ Dependency

«interface» stereotype

italic = abstract

1..* multiplicity

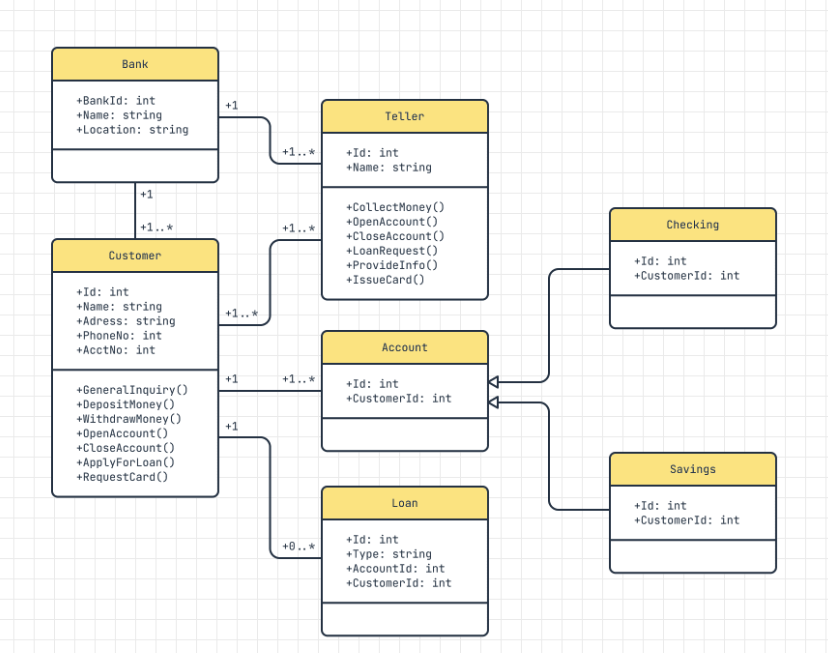

Full Example: Bank System

Bank system class diagram

Object Diagram: Instance Snapshot

  • 📷 A snapshot of objects at a specific point in time
  • 📚 Shows actual values, not types
  • 🔗 Object names are underlined
  • 🔎 Useful for debugging and understanding state
myBook: Book title = "Clean Code" author = "R. Martin" lib: Library name = "City Library" books = [myBook]

Object Diagram: Example

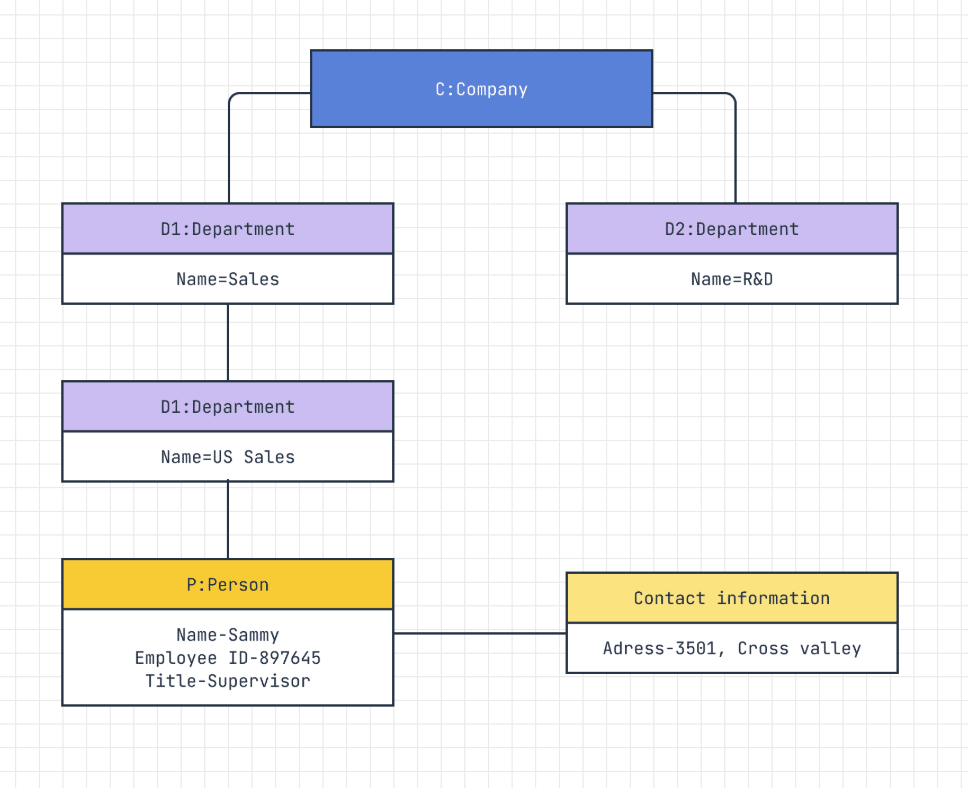

Company object diagram

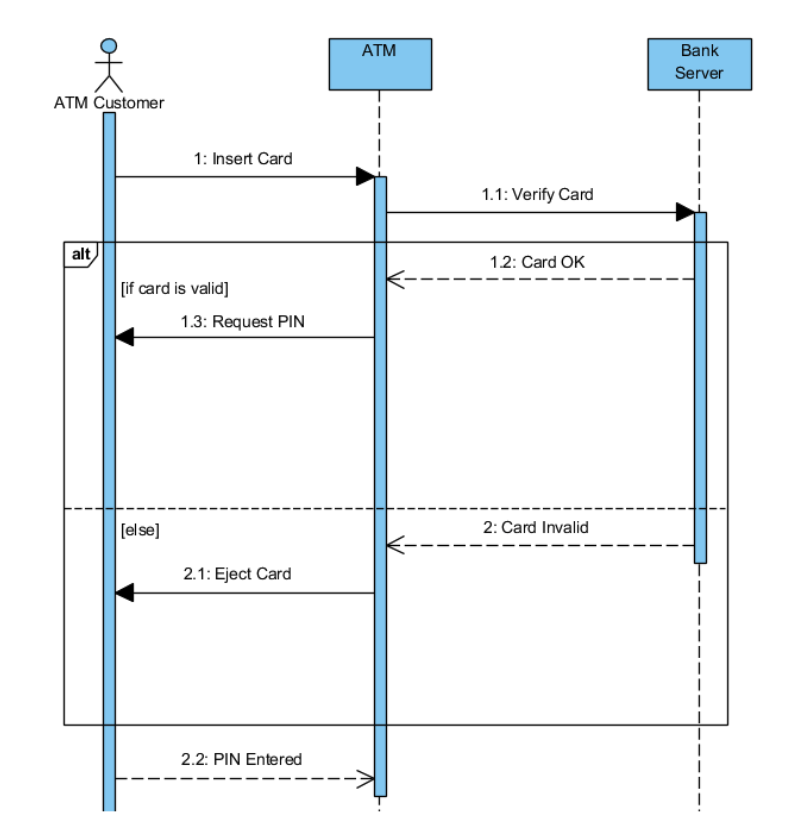

Sequence Diagram: ATM Example

ATM sequence diagram

Why Sequence Diagrams?

Solid arrows = calls/requests. Dashed arrows = responses/returns. Time flows top to bottom.

Use Case Diagrams

Functional requirements from the user's perspective

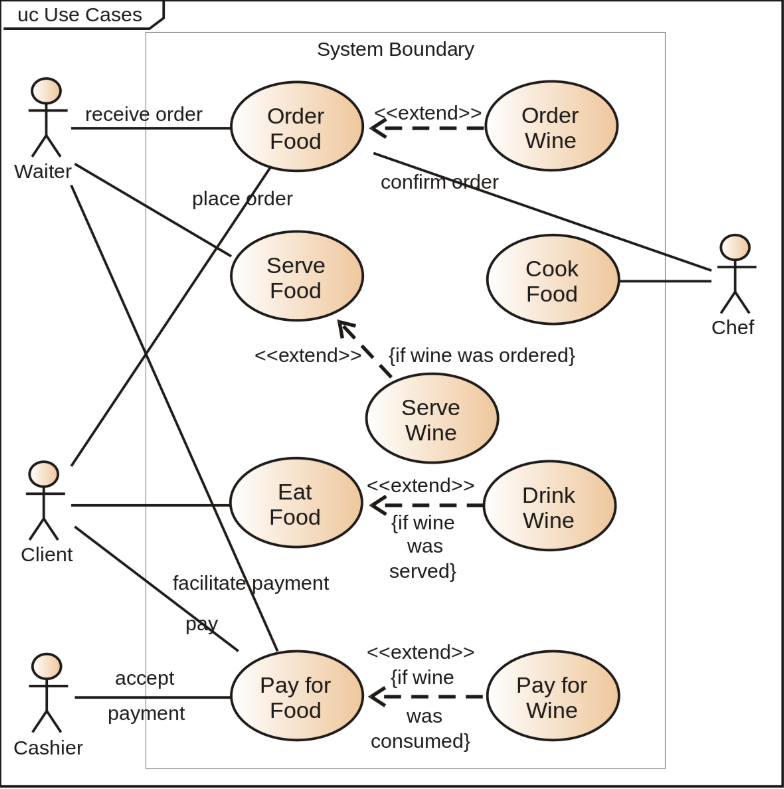

Use Case: Restaurant System

Online Ordering System use case diagram

Why Use Case Diagrams?

Stick figures = actors (users or external systems). Ovals = use cases (what the system does). Box = system boundary.

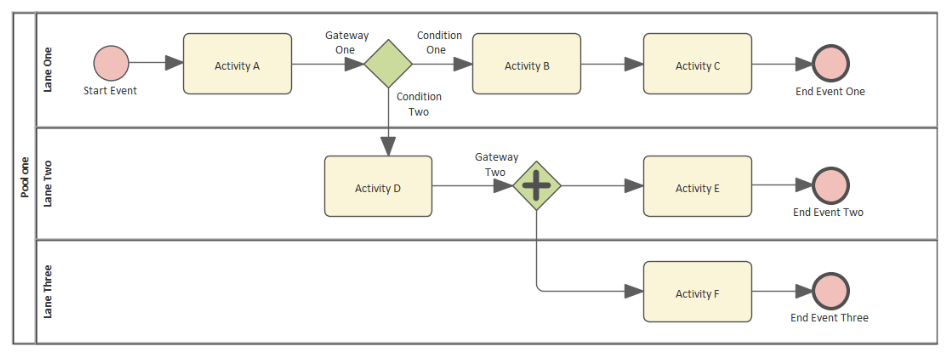

BPMN: Business Process Modeling

  • 📈 BPMN = Business Process Model and Notation
  • 🔄 Standard for flowcharting business processes
  • 🟢 Start event (circle), 🔴 End event (bold circle)
  • ▣ Tasks (rounded rectangles)
  • ◆ Gateways (diamonds) — decision points
  • ➔ Sequence flows (arrows)
BPMN diagram example

BPMN Fun: Ask for a Date 😊

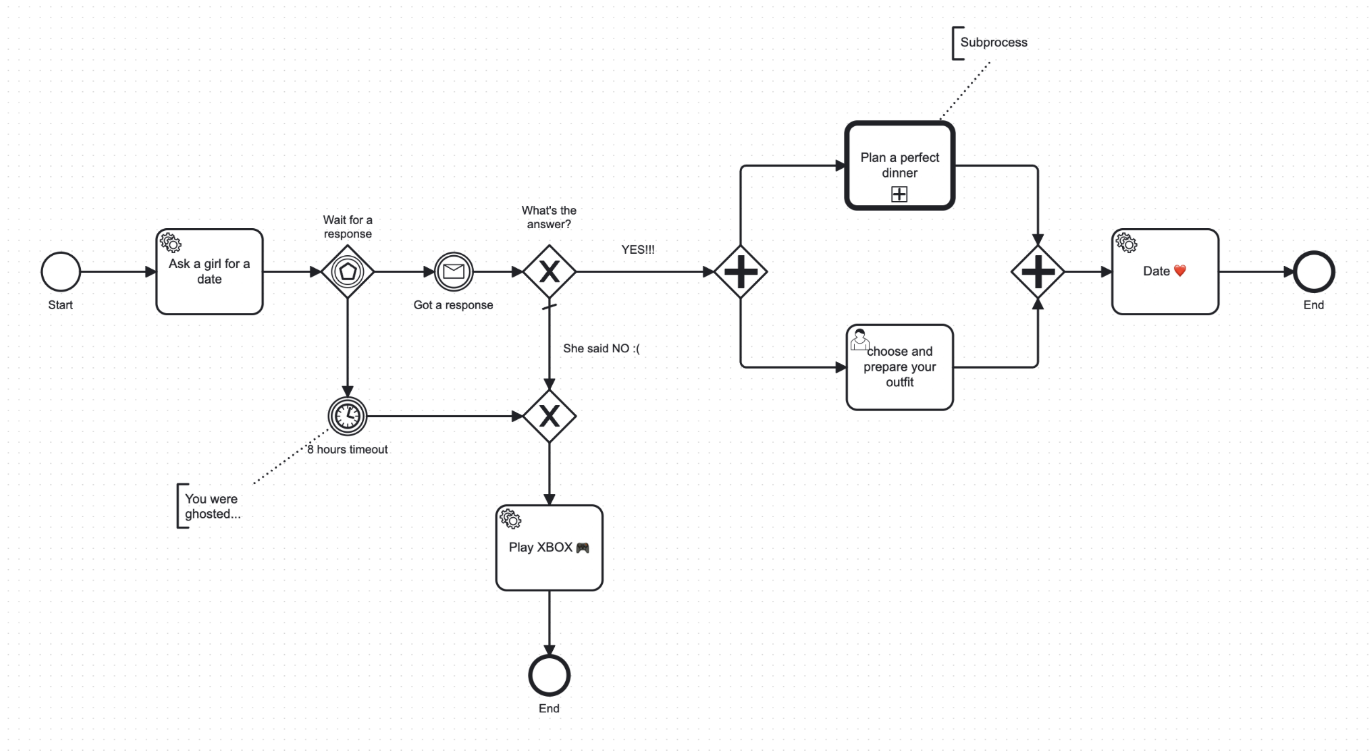

Ask for a date BPMN flowchart

🛠️ Design Patterns

Proven solutions to common software design problems

What is a Design Pattern?

A standardized solution to a commonly occurring problem in software design.

They are templates, not ready-made code. You adapt the pattern to fit your specific problem.

💡 Think of patterns as blueprints — they show the approach, but the implementation is yours.

🚲 Don't reinvent the wheel!

You wouldn't design your own sorting algorithm for production code — the same logic applies to software architecture.

History: Christopher Alexander

  • 🏧 Architect (buildings, not software)
  • 📅 1970s — published "A Pattern Language"
  • 💡 Identified 253 architectural patterns for building towns and cities
  • 🔬 Key insight: recurring problems have recurring solutions
Software engineers borrowed this idea: if buildings have patterns, so does code.
A Pattern Language by Christopher Alexander

The Gang of Four (GoF)

  • 📖 "Design Patterns: Elements of Reusable Object-Oriented Software" (1994)
  • 👥 Four authors: Gamma, Helm, Johnson, Vlissides
  • 📜 Catalogued 23 design patterns
  • 🏆 Became the bible of OOP design
When someone says "design patterns," they usually mean the GoF patterns.
Design Patterns: Elements of Reusable Object-Oriented Software

Problem-solving toolkit

Patterns give developers a common vocabulary that transcends programming languages.

Code quality

Patterns promote the SOLID principles we learned last week.

Adaptability & scalability

Three Categories

🏭

Creational

How objects are created

  • Singleton
  • Factory Method
  • Abstract Factory
  • Builder
  • Prototype

🧩

Structural

How objects are composed

  • Adapter
  • Decorator
  • Proxy
  • Composite
  • Facade

💬

Behavioral

How objects communicate

  • Observer
  • Strategy
  • Command
  • Iterator
  • State

Creational Patterns

Deal with object creation mechanisms

Factory Method
Delegate instantiation to subclasses
Abstract Factory
Families of related objects
Builder
Complex objects step by step
Prototype
Clone existing objects
Singleton
One instance, global access

Structural Patterns

How classes and objects are composed into larger structures

Adapter
Incompatible interfaces work together
Bridge
Separate abstraction from implementation
Composite
Tree structures of objects
Decorator
Add responsibilities dynamically
Facade
Simple interface to complex subsystem
Proxy
Surrogate or placeholder

Behavioral Patterns

How objects communicate and distribute responsibility

Observer
Notify dependents of changes
Strategy
Interchangeable algorithms
Command
Encapsulate request as object
Iterator
Access elements sequentially
State
Alter behavior when state changes
Visitor
New operations without modifying

Singleton Pattern

Ensure a class has only one instance
and provide a global access point to it.

Singleton pattern illustration

Singleton — The Problem

Two problems that Singleton solves:

  • ⚠️ Ensure a single instance: Some resources should only exist once — database, config, logger
  • 🌐 Global access point: Any part of the code needs to reach that single instance
💡 A regular constructor always returns a new object. Singleton overrides this.
Singleton diagram

Singleton in Real Life

🏳️

One President

A country has exactly one president. Everyone refers to the same person. You don't create a new one each time.

📋

One Clipboard

Your phone has one clipboard. Copy from any app, paste in any app — it's always the same clipboard.

🏫

One Principal

A school has one principal. One office, one person in charge. Everyone goes to the same one.

💡 In code: one database connection, one configuration manager, one logger — same idea.

Singleton — The Solution

In Python, we override __new__ since there are no truly private constructors.

The __new__ Special Method

Python's object creation involves two steps:

  • 🔸 __new__(cls) — creates the instance
  • 🔸 __init__(self) — initializes the instance

Singleton needs to control creation itself.

__new__ runs before __init__
1. __new__ creates instance Allocates memory, returns object 2. __init__ initializes instance Sets attributes, runs setup 3. Object returned to caller 4. __del__ destroys (GC)

Singleton — UML Diagram

Singleton - _instance: Singleton - __new__(cls) + query(sql) + connection Client returns same instance - private constructor prevents external instantiation __new__ checks if _instance exists, returns it or creates one

Singleton in Python

class DatabaseSingleton:
    _instance = None

    def __new__(cls):
        if cls._instance is None:
            cls._instance = super().__new__(cls)
            cls._instance.connection = "Connected to DB"
        return cls._instance

    def query(self, sql):
        return f"Executing: {sql}"

✅ How it works:

  • _instance stores the single object (starts as None)
  • __new__ checks: if no instance exists → create one; otherwise → return existing
  • Every call to DatabaseSingleton() returns the same object

Singleton — Usage

class ProductRepository:
    def __init__(self):
        self.db = DatabaseSingleton()

    def get_products(self):
        return self.db.query("SELECT * FROM products")

class UserRepository:
    def __init__(self):
        self.db = DatabaseSingleton()

    def get_users(self):
        return self.db.query("SELECT * FROM users")

product_repo = ProductRepository()
user_repo = UserRepository()
print(product_repo.db is user_repo.db)  # True — same instance!

Singleton — When to Use

Use when you need to control access to a shared resource:

Singleton — Pros & Cons

✅ Pros

  • Single instance guaranteed
  • Global access point
  • Lazy initialization — created only when first needed

❌ Cons

  • Violates SRP — manages its own lifecycle + does its job
  • Masks bad design — global state is a code smell
  • Threading issues — race conditions without locks
  • Hard to test — shared state leaks between tests

Builder Pattern

Construct complex objects step by step.

Builder pattern

Builder — The Problem

Imagine an object that requires a monstrous constructor:

class Car:
    def __init__(self, engine, tires, color, sunroof,
                 gps, seats, stereo, air_conditioning,
                 turbo, parking_sensors, ...):
        ...

Builder in Real Life

🍔

Ordering a Burger

Pick bun, patty, cheese, sauce, extras step by step. Same process → Big Mac or custom burger.

🍕

Building a Pizza

Choose base, sauce, toppings, size. Not all options required — a margherita skips most toppings.

🛒

IKEA Furniture

Follow steps, skip optional parts (shelf dividers, extra drawers). Same instructions, different results.

💡 In code: build a complex object (Car, Computer, Query) one piece at a time, only setting what you need.

Builder — The Solution

  • 🗃️ Extract construction into a separate Builder class
  • 🔄 Step-by-step methods to configure each part
  • 🔗 Methods return self for method chaining
  • ✅ build() returns the final object
💡 Only call the steps you need for your configuration.

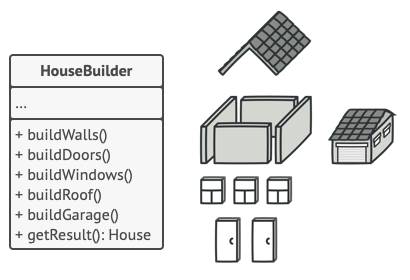

Builder pattern diagram

Builder in Python

The product:

class Car:
    def __init__(self):
        self.engine = None
        self.tires = None
        self.color = None

    def __str__(self):
        return (f"Car: {self.engine}, "
                f"{self.tires}, {self.color}")

The builder:

class CarBuilder:
    def __init__(self):
        self.car = Car()

    def set_engine(self, engine):
        self.car.engine = engine
        return self

    def set_tires(self, tires):
        self.car.tires = tires
        return self

    def set_color(self, color):
        self.car.color = color
        return self

    def build(self):
        return self.car

✅ Key points:

  • Each set_ method returns self → enables method chaining
  • build() returns the finished product

Builder — Bigger Example

class Computer:
    def __init__(self):
        self.cpu = None
        self.ram = None
        self.storage = None
        self.gpu = None
        self.os = None
class ComputerBuilder:
    def __init__(self):
        self.computer = Computer()

    def set_cpu(self, cpu):
        self.computer.cpu = cpu
        return self

    def set_ram(self, ram):
        self.computer.ram = ram
        return self

    def set_storage(self, storage):
        self.computer.storage = storage
        return self

    def set_gpu(self, gpu):
        self.computer.gpu = gpu
        return self

    def set_os(self, os):
        self.computer.os = os
        return self

    def build(self):
        return self.computer

Builder — Usage

builder = ComputerBuilder()

gaming_pc = (builder
    .set_cpu("Intel i9")
    .set_ram("64GB")
    .set_storage("2TB SSD")
    .set_gpu("RTX 4090")
    .set_os("Windows 11")
    .build())

builder = ComputerBuilder()

office_pc = (builder
    .set_cpu("Intel i5")
    .set_ram("16GB")
    .set_storage("512GB SSD")
    .set_os("Ubuntu")
    .build())
Same builder class, different configurations. office_pc skips the GPU — not every step is required.

Builder — Pros & Cons

✅ Pros

  • Step-by-step construction
  • Reuse construction code for different configurations
  • SRP — isolates complex construction from business logic
  • Readable — method chaining is self-documenting

❌ Cons

  • Code complexity increases — more classes to maintain
  • Overkill for simple objects with few fields

Key Takeaways

Patterns are tools, not rules. Use them when they simplify, not when they impress.

Next Up

Design Patterns (Part 2)

Strategy Decorator Factory

Strategy, Decorator, Factory Method, and more!
